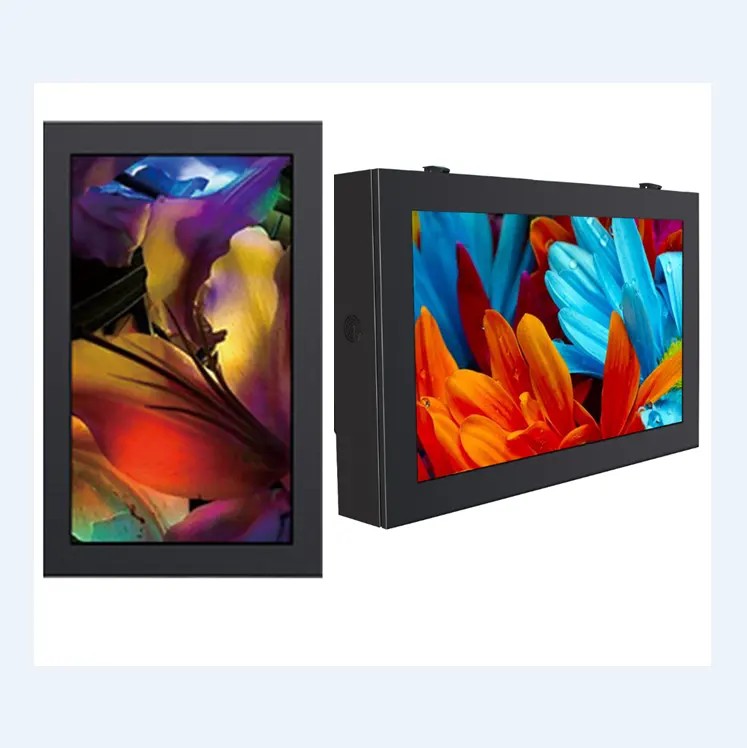

Wall-mounted outdoor advertising display
Quick Details
● Type:TFT
● Application:Outdoor
● Model: AKB32, AKB43, AKB49, AKB50, AKB55, AKB65, AKB75, AKB86
● Max Resolution:3840*2160
● Viewing Angle:178 /178
● Pixel Pitch:0.4845(H)*0.4845 (V)
● Color:16.7M
● Contrast Ratio:4000:1
● Brightness:2000cd/m2
● Response Time:6ms
Main Features:
Structure: waterproof, dust-proof, sun-proof, anti-corrosion, anti-explosion, anti-ultraviolet, anti-theft, anti-biological,Anti-mold, exquisite appearance, customizable.
Display: high-definition, high-brightness, intelligent sensitivity, full viewing angle.
Electronics: lightning protection, leakage protection, intelligent timing, intelligent temperature control system.
Additional configuration: support remote monitoring, touch interaction, smart bank card / QR code / ID card recognition,Smart printing.
1. Use outdoor dedicated high-brightness LCD screen, the brightness can reach 1000-2500nit, visible under strong light,Design life is 50,000 hours.
2. High-definition picture quality, screen resolution: 1920*1080.
3. High dynamic contrast, clearer picture, 178° viewing angle.
4. Intelligent photosensitive system, can automatically adjust the screen brightness according to the environment, users at different times
Can watch the program clearly/comfortably and protect the eyes.
5.Intelligent color calibration, automatic calibration of contrast colors or manual fine-tuning, presents a perfect picture.
6.Adopt intelligent direct ventilation (forced air cooling) heat dissipation system, professional and special heat dissipation design.
7.Independent research and development of the intelligent temperature control system control box, which can be intelligently adjusted according to the internal temperature of the advertising machine Save the internal air and external air of the whole machine to circulate from time to time.
8. Play mode: support loop, timing, interstitial, split screen and partition play, support multimedia elements Any combination of materials and other playback modes.
9. Network support: Ethernet, optional wireless peripheral expansion, optional 3G/4G module)
10.Video playback: Support WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC and other formats.
11. Picture format: support JPEG, PNG, GIG, BMP, etc.
12. File format: support TXT, PPT, WORD, ECELE, etc.
13. Video output: support LVDS format video output.
14. Audio output: support HDMI high-definition video output, left and right channel output, built-in 2*5W high Quality sound.
15. Optional support information release system: RTC real-time clock, timing boot, U disk update playback List, U disk network upgrade, remote control.
Maximum Resolution | 3840X2160 | |
Display color | 16.7M | |
Brightness | 2000cd/m2 | |
Contrast | '3000:1 | |
Visual Angle | 178/178 | |
Input and Output | RJ45/RJ45 | Included(Android network) |
Wifi module | Included(Android network) | |
USB | 2(2XUSB2.0 interface) | |
HDMI | 1 | |
VGA | 1 | |
L/R Audio input | 1(RCAx2) | |
L/R Audio output | 1(RCAx2) | |
Speaker | Speaker 2x5w(9Ω) | |
Operation | Operating Temperature | -40C to +7C |
Operating Humidity | 5% to100% | |
Protection Rating | IP65 | |
Power | AC 100-240V,50/60Hz | |
Power Consumption | 1.8 kW (Mainly for AC starting) | |
Standby Power | >=0.5W | |
Video | Support Media Format | All format video,all format music,all format Image(JPG,GIF,BMP,PNG) |
Color System | PAL/NTSC/SECAM | |
Menu Language | Chinese/English(Multiple Language Supported) | |
Remote controller | IR Remote Controller |
Application
1.Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop,
Hotel, Restaurant, travel agency, Chemist's shop, etc.
